EKS 的 kube-proxy

概述​

EKS 的 Auto Mode 和 Fargate 都看不到 kube-proxy，但实际背后应该有 kube-proxy 在运行，因为可以正常访问 Service，对于用户来说是黑盒。

只有在安装了 kube-proxy 插件，并创建了节点组时，由节点组创建出来的节点才会部署 kube-proxy DaemonSet，通过 nodeAffinity 来排除掉 Fargate 和 Auto Mode 节点:

affinity:
  nodeAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
      nodeSelectorTerms:
      - matchExpressions:
        - key: eks.amazonaws.com/compute-type
          operator: NotIn
          values:
          - fargate
          - auto

如何设置转发模式​

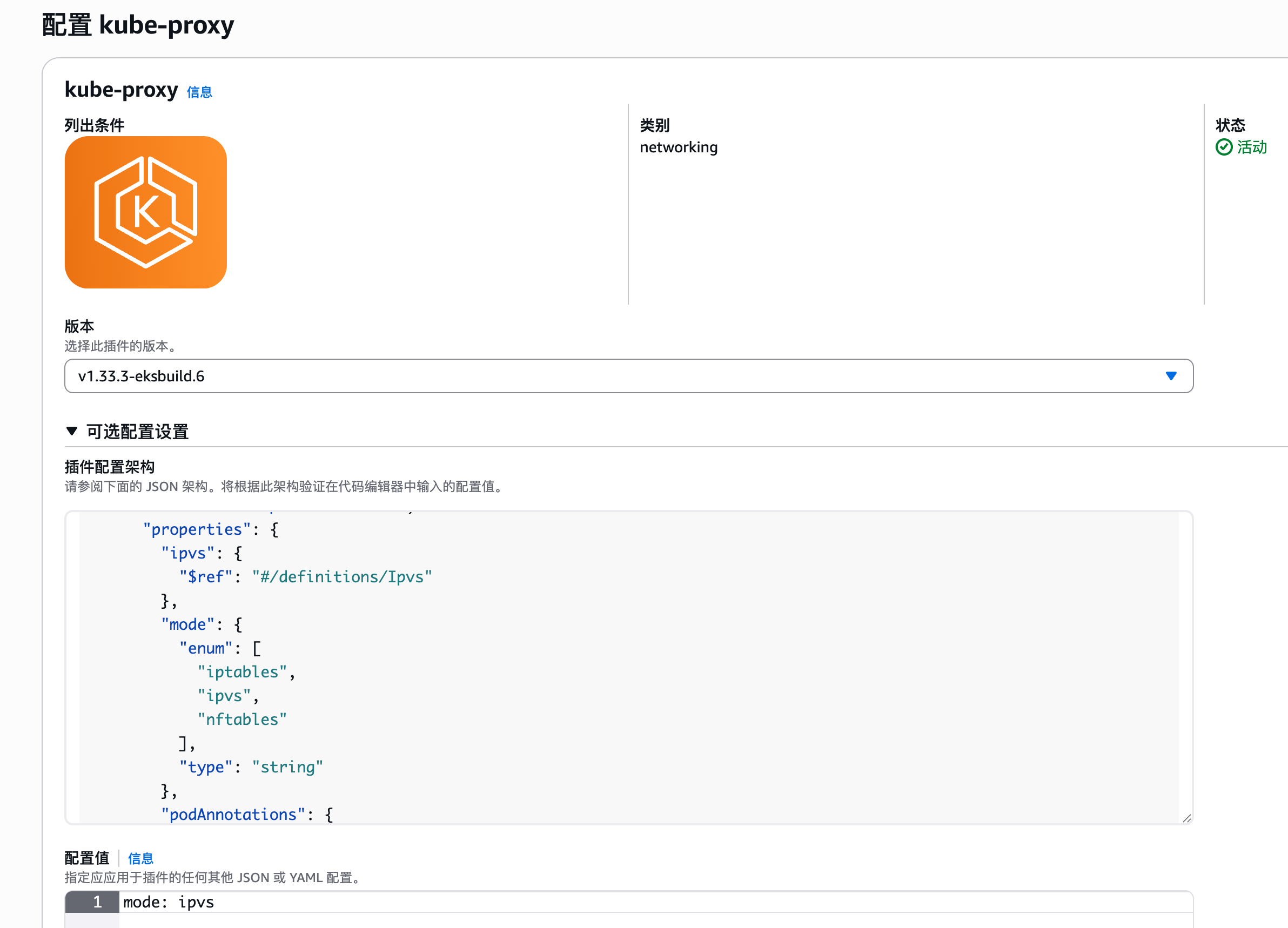

安装 kube-proxy 插件，默认是 iptables 转发模式，可通过插件配置来自定义，比如设置为 ipvs 转发模式：

组件部署 YAML​

apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    eks.amazonaws.com/component: kube-proxy
    k8s-app: kube-proxy
  name: kube-proxy
  namespace: kube-system
spec:
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kube-proxy
  template:
    metadata:
      creationTimestamp: null
      labels:
        k8s-app: kube-proxy
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
              - key: kubernetes.io/arch
                operator: In
                values:
                - amd64
                - arm64
              - key: eks.amazonaws.com/compute-type
                operator: NotIn
                values:
                - fargate
                - auto
      containers:
      - command:
        - kube-proxy
        - --v=2
        - --config=/var/lib/kube-proxy-config/config
        - --hostname-override=$(NODE_NAME)
        env:
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: spec.nodeName
        image: 602401143452.dkr.ecr.us-east-2.amazonaws.com/eks/kube-proxy:v1.33.3-minimal-eksbuild.6
        imagePullPolicy: IfNotPresent
        name: kube-proxy
        resources:
          requests:
            cpu: 100m
        securityContext:
          privileged: true
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /var/log
          name: varlog
        - mountPath: /run/xtables.lock
          name: xtables-lock
        - mountPath: /lib/modules
          name: lib-modules
          readOnly: true
        - mountPath: /var/lib/kube-proxy/
          name: kubeconfig
        - mountPath: /var/lib/kube-proxy-config/
          name: config
      dnsPolicy: ClusterFirst
      hostNetwork: true
      priorityClassName: system-node-critical
      restartPolicy: Always
      schedulerName: default-scheduler
      serviceAccount: kube-proxy
      serviceAccountName: kube-proxy
      terminationGracePeriodSeconds: 30
      tolerations:
      - operator: Exists
      volumes:
      - hostPath:
          path: /var/log
          type: ""
        name: varlog
      - hostPath:
          path: /run/xtables.lock
          type: FileOrCreate
        name: xtables-lock
      - hostPath:
          path: /lib/modules
          type: ""
        name: lib-modules
      - configMap:
          defaultMode: 420
          name: kube-proxy
        name: kubeconfig
      - configMap:
          defaultMode: 420
          name: kube-proxy-config
        name: config
  updateStrategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 10%
    type: RollingUpdate
