VKE 的 flannel 网络插件

概述

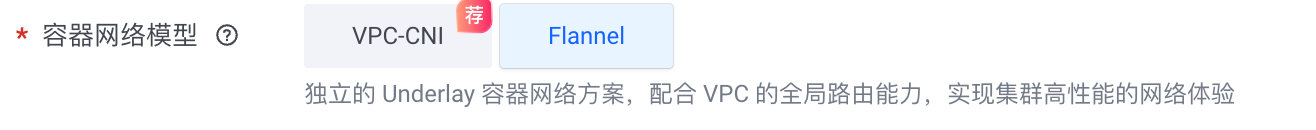

本文调研 VKE 选择 Flannel 网络插件的部署和配置情况（基于 VKE v1.30）：

YAML 清单

kube-flannel-ds

apiVersion: apps/v1
kind: DaemonSet
metadata:
  annotations:
    deprecated.daemonset.template.generation: "1"
    meta.helm.sh/release-name: flannel
    meta.helm.sh/release-namespace: kube-system
  labels:
    addon.vke.volcengine.com/status-check: flannel
    app: flannel
    app.kubernetes.io/managed-by: Helm
    tier: node
  name: kube-flannel-ds
  namespace: kube-flannel
spec:
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      creationTimestamp: null
      labels:
        addon.vke.volcengine.com/status-check: flannel
        app: flannel
        tier: node
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
              - key: node.kubernetes.io/instance-type
                operator: NotIn
                values:
                - dcp-node
              - key: type
                operator: NotIn
                values:
                - virtual-kubelet
      containers:
      - args:
        - --ip-masq
        - --kube-subnet-mgr
        command:
        - /opt/bin/flanneld
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: EVENT_QUEUE_DEPTH
          value: "5000"
        image: vke-cn-beijing.cr.volces.com/vke/flannel:v0.20.1
        imagePullPolicy: IfNotPresent
        name: kube-flannel
        resources:
          limits:
            cpu: 500m
            memory: 512Mi
          requests:
            cpu: 100m
            memory: 64Mi
        securityContext:
          capabilities:
            add:
            - NET_ADMIN
            - NET_RAW
          privileged: false
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /run/flannel
          name: run
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
        - mountPath: /run/xtables.lock
          name: xtables-lock
      dnsPolicy: ClusterFirst
      hostNetwork: true
      initContainers:
      - command:
        - /bin/sh
        - -c
        - /install.sh
        image: vke-cn-beijing.cr.volces.com/vke/cniplugins:v1.1.0
        imagePullPolicy: IfNotPresent
        name: install-cni-plugin
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /opt/cni/bin
          name: cni-plugin
      - args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        command:
        - cp
        image: vke-cn-beijing.cr.volces.com/vke/flannel:v0.20.1
        imagePullPolicy: IfNotPresent
        name: install-cni
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /etc/cni/net.d
          name: cni
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
      priorityClassName: system-node-critical
      restartPolicy: Always
      schedulerName: default-scheduler
      serviceAccount: flannel
      serviceAccountName: flannel
      terminationGracePeriodSeconds: 30
      tolerations:
      - operator: Exists
      volumes:
      - hostPath:
          path: /run/flannel
          type: ""
        name: run
      - hostPath:
          path: /opt/cni/bin
          type: ""
        name: cni-plugin
      - hostPath:
          path: /etc/cni/net.d
          type: ""
        name: cni
      - configMap:
          defaultMode: 420
          name: kube-flannel-cfg
        name: flannel-cfg
      - hostPath:
          path: /run/xtables.lock
          type: FileOrCreate
        name: xtables-lock
  updateStrategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1
    type: RollingUpdate

kube-flannel-cfg

apiVersion: v1
kind: ConfigMap
metadata:
  annotations:
    meta.helm.sh/release-name: flannel
    meta.helm.sh/release-namespace: kube-system
  labels:
    app: flannel
    app.kubernetes.io/managed-by: Helm
    tier: node
  name: kube-flannel-cfg
  namespace: kube-flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "192.168.244.0/22",
      "Backend": {
        "Type": "alloc"
      }
    }

CNI 配置

{
  "name": "cbr0",
  "cniVersion": "0.3.1",
  "plugins": [
    {
      "type": "flannel",
      "delegate": {
        "hairpinMode": true,
        "isDefaultGateway": true
      }
    },
    {
      "type": "portmap",
      "capabilities": {
        "portMappings": true
      }
    }
  ]
}

CNI 二进制

root@iv-ye59gm2y9sxjd1ty5094:/opt/cni/bin# ls
bandwidth  bridge  dhcp  firewall  flannel  host-device  host-local  ipvlan  loopback  macvlan  portmap  ptp  sbr  static  tuning  vlan  vrf

flannel 进程信息

$ kubectl exec -i -t kube-flannel-ds-2fwln -- bash
Defaulted container "kube-flannel" out of: kube-flannel, install-cni-plugin (init), install-cni (init)
bash-5.1# ps -ef
PID   USER     TIME  COMMAND
    1 root      0:01 /opt/bin/flanneld --ip-masq --kube-subnet-mgr
bash-5.1# /opt/bin/flanneld --version
v0.20.1
