BPF 映射
什么是 BPF 映射?

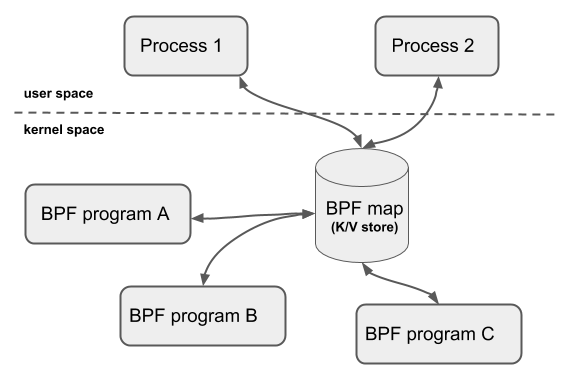

eBPF 用户态和内核态程序通过 BPF 映射来交换数据,内核态程序可以创建、更新、删除、查询 BPF 映射,用户态程序可以查询 BPF 映射,并且多个程序可以共享同一个 BPF 映射:
如何创建 BPF 映射?
BPF 映射如何创建呢?需要通过用户态程序的系统调用来创建,下面示例代码创建了一个 BPF 映射并返回文件描述符:
int bpf_create_map(enum bpf_map_type map_type,
unsigned int key_size,
unsigned int value_size, unsigned int max_entries)
{
union bpf_attr attr = {
.map_type = map_type,
.key_size = key_size,
.value_size = value_size,
.max_entries = max_entries
};
return bpf(BPF_MAP_CREATE, &attr, sizeof(attr));
}
如果使用 bcc 之类的开发工具,会有进一步的封装,可以用宏来简化 BPF 映射的创建。
有哪些类型的 BPF 映射?
创建 BPF 映射时,需要指定 BPF 映射的类型,可以通过如下方法查看当前内核版本支持的 BPF 映射类型:
bpftool feature probe | grep map_type
eBPF map_type hash is available
eBPF map_type array is available
eBPF map_type prog_array is available
eBPF map_type perf_event_array is available
eBPF map_type percpu_hash is available
eBPF map_type percpu_array is available
eBPF map_type stack_trace is available
eBPF map_type cgroup_array is available
eBPF map_type lru_hash is available
eBPF map_type lru_percpu_hash is available
eBPF map_type lpm_trie is available
eBPF map_type array_of_maps is available
eBPF map_type hash_of_maps is available
eBPF map_type devmap is available
eBPF map_type sockmap is available
eBPF map_type cpumap is available
eBPF map_type xskmap is available
eBPF map_type sockhash is available
eBPF map_type cgroup_storage is available
eBPF map_type reuseport_sockarray is available
eBPF map_type percpu_cgroup_storage is available
eBPF map_type queue is available
eBPF map_type stack is available
eBPF map_type sk_storage is available
eBPF map_type devmap_hash is available
eBPF map_type struct_ops is available
eBPF map_type ringbuf is available
eBPF map_type inode_storage is available
eBPF map_type task_storage is available
eBPF map_type bloom_filter is available
eBPF map_type user_ringbuf is available
eBPF map_type cgrp_storage is available
也可以参考内核头文件 include/uapi/linux/bpf.h 中的 bpf_map_type
定义。
BPF 映射能否被持久化?
BPF 映射默认会在用户态程序关闭文件描述符时被内核自动删除,如果希望用户态程序推出或重启后,BPF 映射不被清理,就需要调用 BPF_OBJ_PIN
命令将 BPF 映射挂载到 /sys/fs/bpf
中。
如何在命令行操作 BPF 映射?
可以用 bpftool
命令行工具来查看或操作 BPF 映射:
# 创建一个哈希表映射,并挂载到/sys/fs/bpf/stats_map(Key和Value的大小都是2字节)
bpftool map create /sys/fs/bpf/stats_map type hash key 2 value 2 entries 8 name stats_map
# 查询系统中的所有映射
bpftool map
# 示例输出
# 340: hash name stats_map flags 0x0
# key 2B value 2B max_entries 8 memlock 4096B
# 向哈希表映射中插入数据
bpftool map update name stats_map key 0xc1 0xc2 value 0xa1 0xa2
# 查询哈希表映射中的所有数据
bpftool map dump name stats_map
# 示例输出
# key: c1 c2 value: a1 a2
# Found 1 element
# 删除哈希表映射
rm /sys/fs/bpf/stats_map
